KG-06P0610-26 6mm small plastic planetary gearhead dc electric motor

6MM Mini Coreless DC Gear Motor Small Volume Price (USD)

Ask for a quotation for mass production quantity, contact us or customizations and integration.

6mm Mini DC Gear Motor – 17mm Type Performance 3V 1200RPM±10%

     Features: 6mm planetary gear pager motor has advantages of high wear resistance, high transmission efficiency, high torque/volume ratio, high-temperature resistance and impact resistance.

     Material: Using plastic+high hardness steel, robust, improve the quality of bearing and motor service life, good consistency, low noise, corrosion resistant, sturdy, fit for a variety of environment. Most are used in electric lock and robot.

    The gearhead and the shaft are made from glass-fiber reinforced engineering plastic. Unlike the general cylindrical pager motors these motors have gearbox (inside 1-4 stages gears). The gear-head mechanically change the speed for increasing in push strength. If use the ordinary 6mm coreless motor in stead of the gearhead motor, that wouldn’t have that torque to drive.

    This 6mm planetary gear motor is a combination of different motors and a gearboxes, of which there are four gearbox options, they are 1 gear reduction ratio, 2 gear reduction ratio, 3 gear reduction ratio, 4 gear reduction ratio. The choice of motor is 6mm diameter: 9mm length, 12mm length, 14mm length, 15mm length, 4 kinds of choices, there are 16 kinds of optional small dc gear motors in this combination.Kegu-motor is the source manufacturer of small gear motor. The efficiency and performance have reached the best results. There are 16 kinds of torques options, the parameter tables are below, and 6mm planetary gear motor model KG-06P0610 series is in stock now. Samples can be shipped directly. The diameter of all miniature gear motors this page is Φ6mm, only difference is the length of the micro gear motors .

 KG-06P0610-26 Series DC Gear Motor

6mm diameter, 9mm length coreless nano planetary dc gear motors, motor no-load speed 33,000rpm, with 4 kinds of gearboxes. A planetary dc gear motor is a direct current (DC) motor that uses gears to rotate a shaft. The gears are mounted on a rotating platform, called a planetary gear, which is driven by the motor. The gears are usually made of metal, but can also be made of plastic or other materials.

  Above specifications are subject to change without notice, just for reference and customizable according to requirements.
  Plastic output shaft is better to be used in those conditions that need small torque, or of no radial load, or via coupling joint.
  RoHS compliant. The gear ratio can be adjusted as per buyers’ requirements.
  Please allow slight manual measurement deviation for the data.

 6MM Small DC Plastic Gear Motor Outline Drawing

   Above specifications are subject to change without notice, just for reference and customizable according to requirements.
   Plastic output shaft is better to be used in those conditions need small torque, or of no radial load, or via coupling joint.

    A mini dc gear motor is a small, lightweight and powerful motor that is perfect for a wide range of applications.
    From powering small electronic devices to operating remote-controlled vehicles, a mini dc gear motor can provide the power you need in a compact and efficient package.
   Gears are made of special LCP material, which is durable.

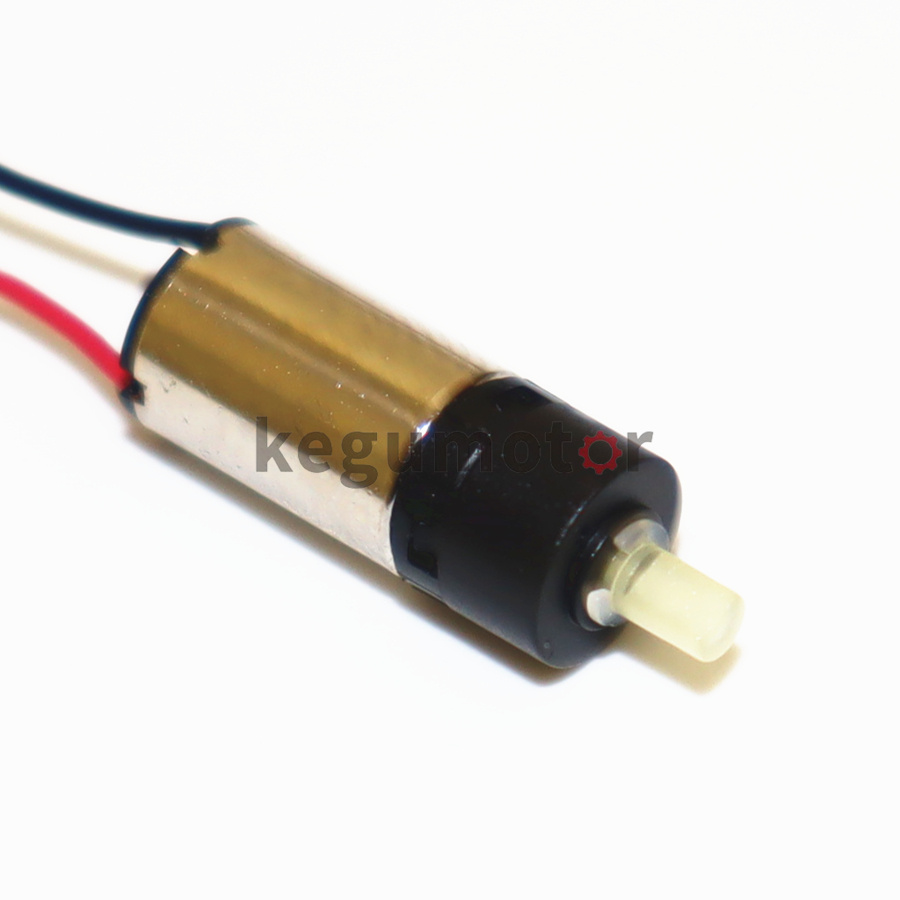

High Accuracy Miniature Geared Motor Photo

6mm planetary gear motor Widely used in:

Smart Lock / Electronic Rotating Mascaras / Robotic Mechanisms / Medical Equitments / Security Device

Keywords:

6mm mini dc gear motor, coreless gear motor, 6mm precision gear motors

3V coreless motor is a high-speed, high-torque motor that is perfect for a wide range of applications. It features a high power density and low inertia, making it ideal for use in applications where space is limited. Additionally, the coreless design of this motor eliminates cogging and provides for smoother operation.

6mm Plastic Coreless Gear Motor Mass Production

Coreless micro gear motor is a type of electric motor that uses a permanent magnet to create torque, instead of using a winding around an iron core. This makes the motor lighter and more efficient. Coreless motors are used in applications where weight and efficiency are important, such as drones and RC vehicles.

Coreless gear motors have rotor windings wound in a honeycomb form to create a self-supporting cylinder. This eliminates the mass and inertia of a rotating rotor, making rapid acceleration and deceleration possible. All of the core produces torque and smooths operation. The design also produces high acceleration rates.

You can find suitable coreless dc gear motor according to your application. The first point to consider is motor dimensions. Diameter and motor body length are two important parameters usually cannot be changed. When mass production is required, the coreless motor shaft length can be customized according to customer needs.

Anyway, you can tell us the requirements about the DC motor, all inquiries will be response in 24 hours.
