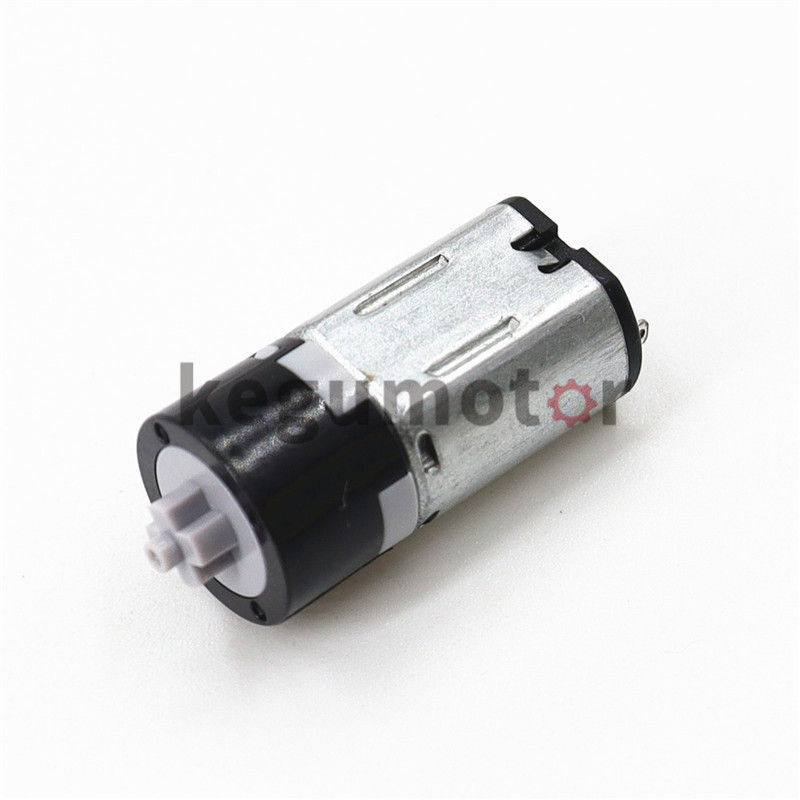

KG-10PM10 10mm Plastic Gearbox Planetary Gear Motor – 19mm Model , Ratio 171:1

0.85$

10MM Mini Plastic DC Gear Motor Small Volume Price (USD)

QTY BREAKUNIT PRICE
100+$3.50
1000+$1.75
10000+$0.85

Ask for a quotation for mass production quantity, contact us or customizations and integration.



Tag:

10mm gear motor| planetary gearhead dc motor| small planetary gear motor| plastic gear motor|

10mm Mini DC Gear Motor – 19mm Type Performance 3V

  A plastic gearbox motor is a type of gearbox that is made out of plastic. These motors are typically used in applications where weight or space is a concern, such as in small robotic devices. One advantage of using a plastic gearbox motor is that it can be made very light-weight. Additionally, the size of these motors can be easily customized to fit the application. Another advantage of plastic gearbox motors is that they are often less expensive than metal gearbox motors. One downside to using a plastic gearbox motor is that they may not be as durable as metal gearbox motors and may not be able to handle as much torque.

Ratio 171:1 Micro Planetary Gearmotor Outline Drawing

10mm gear motor size.png

KG-10PM10 10MM Series DC Gearmotor Data Sheet :




MODEL

VOLTAGENO LOADAT MAXIMUM EFFICIENCYSTALL
OPERATING RANGERATEDSPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTTORQUECURRENT
Vr/minmAr/minmAmN.mg.cmwmN.mg.cmmA
KG-10PM10-012.0-4.03.050353865

6.12

600.120.4200160
KG-10PM10-022.0-4.03.01204089110

2.94

300.217.6180350
KG-10PM10-031.0-3.01.545324070

8.67

850.217.37165160
KG-10PM10-04
  2.0-4.0  3.0  65 3545705.1500.125.2250180
KG-10PM10-05
  1.0-3.0
  3.0 10045751002.85280.116.3160330
KG-10PM10-06
 1.5-4.5  4.5 122901003507.6750.220.32001100

10mm Micro Speed Reduction Geared Motor Parameters


10mm planetary gear motor Widely used in:

Smart Lock / Electronic Rotating Mascaras / Robotic Mechanisms / Medical Equitments / Security Device

Keywords:

10mm mini dc gear motor, coreless gear motor, 10mm precision gear motors,12v geared motor, planetary gear motor electric, small dc motor drive gearbox

Development Samples:

Sampling quantities for stocked models are available for ordering directly from us online.

Engineering & Manufacturing:

Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.

Payment Method:

Payment methods : Paypal or T/T

Shipping Method:

1.Delivery: DHL door to door 3-4days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!

FAQ & Frequently Asked Questions

Q: If customized, what information should you provide?

A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It's better to offer application prototype drawings to us if possible.

Q: Do you provide technology support?

A: Yes. Our company have strong R&D capability and we can provide technology support if you need.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will bethis model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor'sexpected lifetime ? etc. Then we can a make full assessment according to that.
Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll makeour evaluation to see if we can arrange or not.

Q: What's your main motors?

A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What's the main application of the micro dc motor?

A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.

Planetary Gear Motor Cross Output Shaft M10 Motor Mass Production Line




     Plastic gears motor is equipped with plastic gears, using in robot, worm gears high torque, light weight, big torque.

    We are the supplier of very small dc gear motor, small metal brushed dc gear and carbon brush small dc gear motor types. 12V dc gear motor high torque low rpm. Kegu-motor can make standard & custom DC brush gear motors for your product prototyping.

    The following micro DC gear motors are the products that we have produced in batches before. Some of them have samples to provide samples directly, jump to our online store to buy, others need to contact us to produce new ones.

     The parameters of the miniature dc gear motor are all there, including micro dc gear motors DC voltage, very small dc gear motor current, micro dc gear motor maximum torque, small dc gear motor size, performance curve and other informations. If you feel that it is suitable for your application, you can click the sample column to contact us for quotation information and ready to make samples of the small dc gear motors.
