17mm Diameter 22mm Length Brushelss Coreless DC Motor 1722RB

15$

Mini Coreless DC Motor Small Volume Price (USD)

QTY BREAKUNIT PRICE
1+$15.00
100+$8.95
1000+$7.63

Ask for a quotation for mass production quantity, contact us or customizations and integration.


17MM Brushless DC Motors Mini Coreless Type Specifications

Brushless Coreless motor is a high-speed motor that is perfect for a wide range of applications. It features a high power density and low inertia, making it ideal for use in applications where space is limited. Additionally, the coreless design of this motor eliminates cogging and provides for smoother operation.

Motor Model:1722 brushless coreless motor
Body Diameter17.0mm ± 0.1mm
Body Length22mm ±0.3mm
Rated Operating Voltage12V DC
Rated Vibration Speed25000 ± 10%rpm min
Rated Current120 mA
Resistance2.26 Ω



22mm 25,000RPM Micro DC Coreless Motor Dimension


Brushless Coreless micro motor is a type of electric motor that uses a permanent magnet to create torque, instead of using a winding around an iron core. This makes the motor lighter and more efficient. Coreless motors are used in applications where weight and efficiency are important, such as drones and RC vehicles


1722rb drawing.png

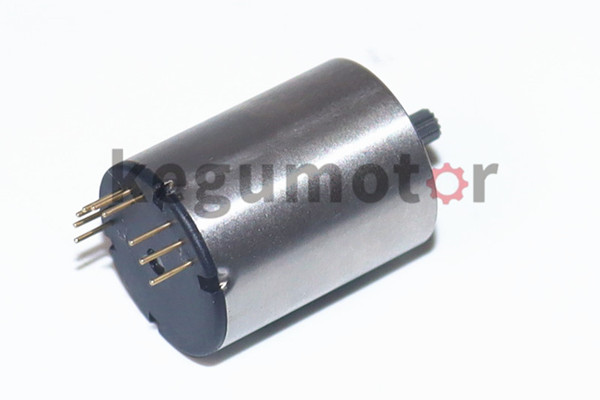

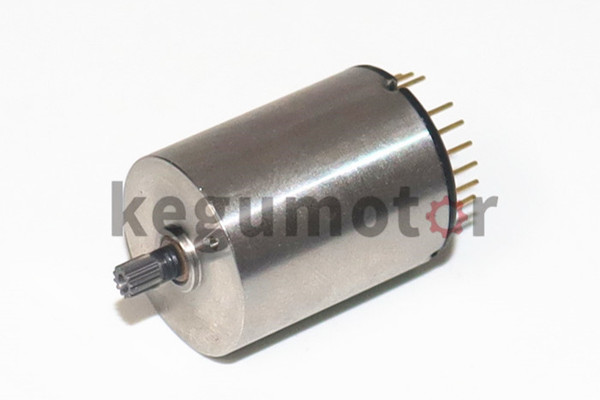

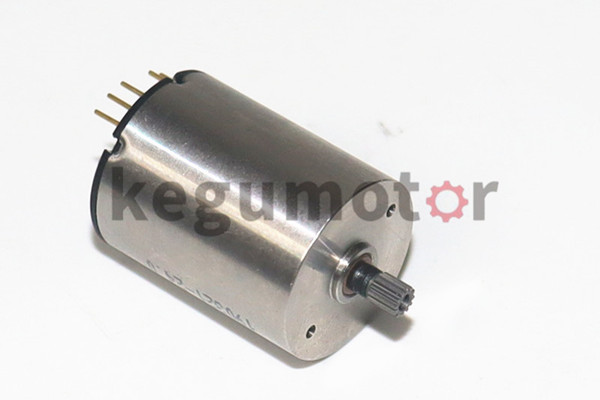

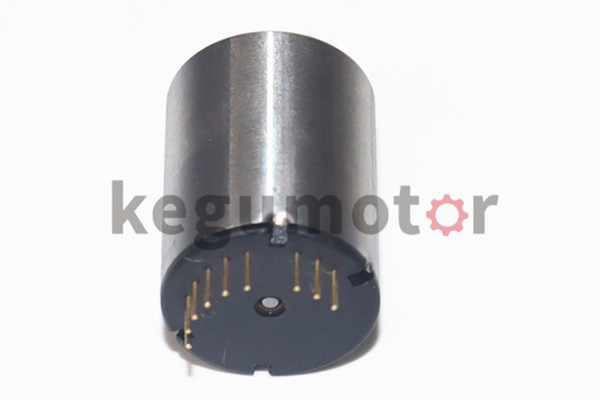

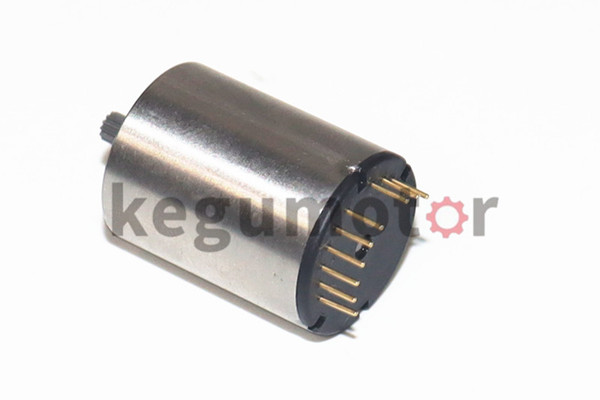

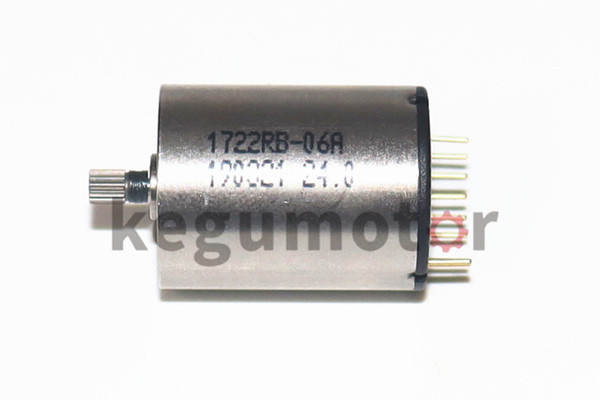

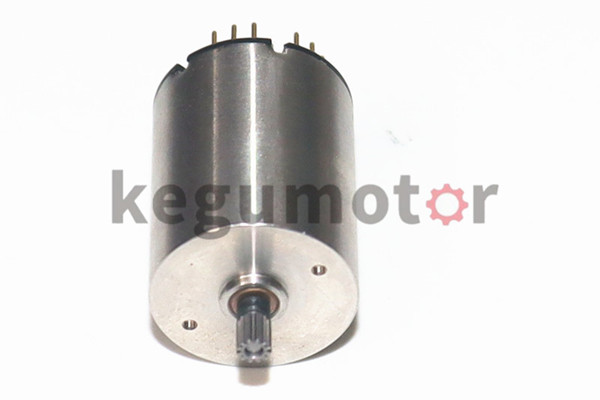

17mm Diameter Brushless Coreless Motor  22mm Type With pinion


1722-1.jpg 1722-4.jpg

 Brushless 1722 coreless motor also called hollow cup motor , compact and convenient to use, no external moving part. Used in handheld instruments haptic. 1722 Series Coreless Motors ; 17 mm x 22 mm, 6 V, brushless coreless motor for precision devices. Only 17 mm in diameter, 1722 series is currently the high quality for medical equipment on the market.

It was designed for devices requiring high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

It may be driven by either DC voltage or a PWM signal. A driver IC is required but may be used to produce various haptic effects.

If a higher force is required, please consider using one of ODM & larger sized coreless motor. These motors range from 4 mm to 40 mm in diameter and can generate higher forces .

Specification of the High Torque 1722 Series Brushless Coreless DC Motor

1722RB data.png

Keywords:

coreless dc motor, small coreless motor, coreless electric motor

Development Samples:



Sampling quantities for stocked models are available for ordering directly from us online.

Engineering & Manufacturing:

Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.

Payment Method:

Payment methods : Paypal or T/T

Shipping Method:

1.Delivery: DHL door to door 3-4days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!



FAQ & Frequently Asked Questions

Q: If customized, what information should you provide?

A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It's better to offer application prototype drawings to us if possible.

Q: Do you provide technology support?

A: Yes. Our company have strong R&D capability and we can provide technology support if you need.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will bethis model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor'sexpected lifetime ? etc. Then we can a make full assessment according to that.
Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll makeour evaluation to see if we can arrange or not.

Q: What's your main motors?

A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What's the main application of the micro dc motor?

A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.

Micro DC Coreless Motor Structure


12V coreless motor is a high-speed, high-torque motor that is perfect for a wide range of applications. It features a high power density and low inertia, making it ideal for use in applications where space is limited. Additionally, the coreless design of this motor eliminates cogging and provides for smoother operation.


17mm Brushless Coreless Motor Mass Production

coreless rotor.jpg




Coreless micro motor is a type of electric motor that uses a permanent magnet to create torque, instead of using a winding around an iron core. This makes the motor lighter and more efficient. Coreless motors are used in applications where weight and efficiency are important, such as drones and RC vehicles.

Coreless motors have rotor windings wound in a honeycomb form to create a self-supporting cylinder. This eliminates the mass and inertia of a rotating rotor, making rapid acceleration and deceleration possible. All of the core produces torque and smooths operation. The design also produces high acceleration rates.

You can find suitable coreless dc motor according to your application. The first point to consider is motor dimensions. Diameter and motor body length are two important parameters usually cannot be changed. When mass production is required, the coreless motor shaft length can be customized according to customer needs.

Anyway, you can tell us the requirements about the DC motor, all inquiries will be response in 24 hours.
